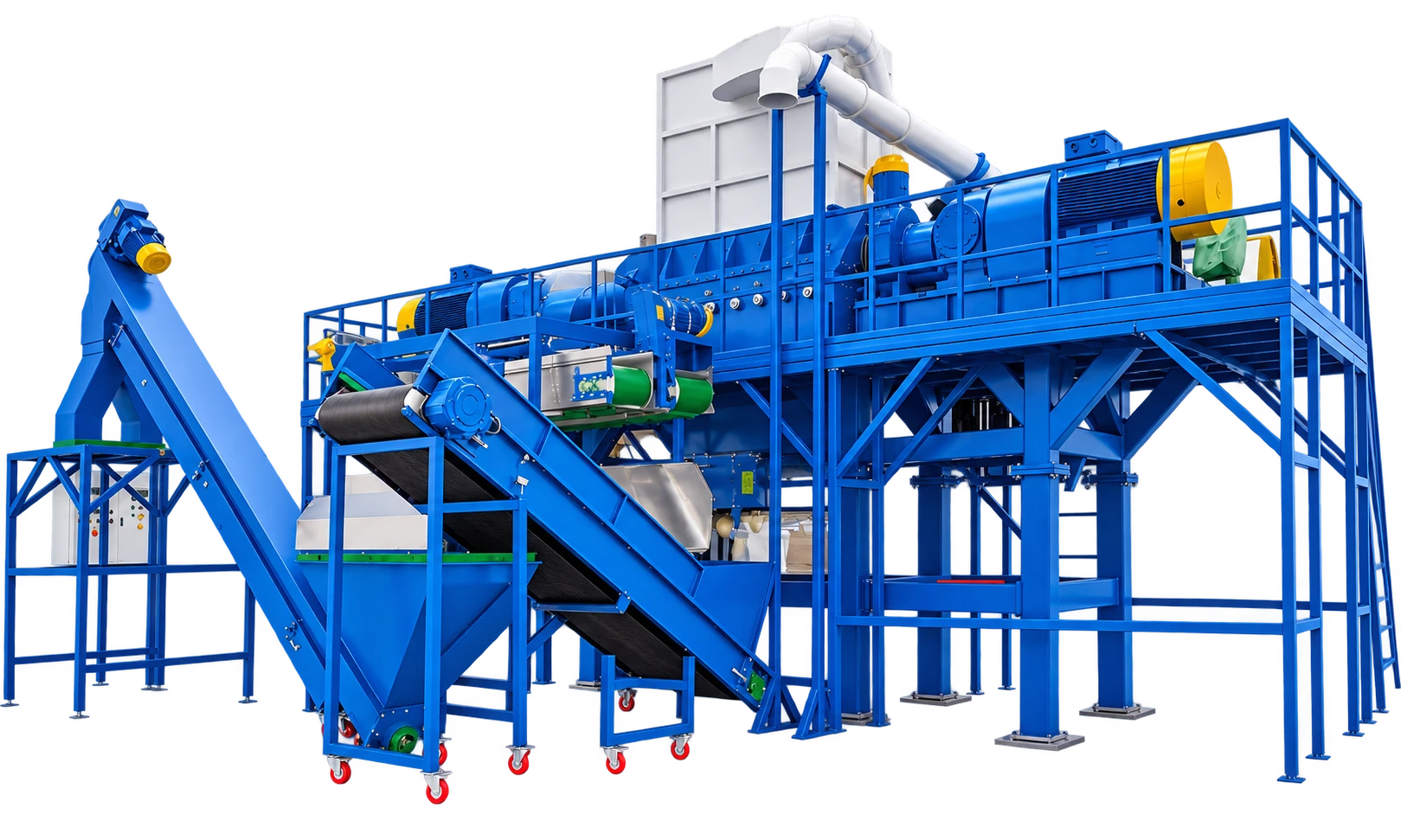

Automatic Waste Tyre Shredder Machine

The Rubber Shredding System is a high-capacity tyre processing solution designed to convert pre-cut car and truck tyre blocks into fine rubber granules of up to 25 mm, while facilitating the separation of embedded steel wire.

With a processing capacity of 5–6 tonnes per hour, the automated system integrates feeding, rasping, dust collection, magnetic separation, conveying, cooling and material handling into a continuous processing line. The system is designed to achieve rubber purity of ≥99% with steel content below 1%, while recovered steel can achieve a purity of ≥85%.

Need Any Help?

Product Specifications

System Capacity	5–6 TPH
Input Material	Car & truck tyre blocks
Input Block Size	150–200 mm
Rubber Output Size	≤25 mm
Rubber Purity	≥99%
Steel Content in Rubber	<1%
Steel Purity	≥85%
Main Rasper	LGF66210
Rasper Drive	2 × 200 kW
Rotor Diameter	Ø660 mm
Main Shaft Length	2,100 mm
Main Shaft Speed	84 RPM
Rotor Knives	48
Stator Knives	46
Knife Material	D2, HRC 58–61
Screen Size	Ø25 mm
Electrical Control	PLC Operation
Operating Voltage	415 V / 3 Phase / 50 Hz

Product Features

High Processing Capacity
Heavy-Duty Machine
Controlled Particle Size
Efficient Steel Separation
Integrated Dust Collection
Automated Electrical Control
Water Cooling System

Advantages of
Automatic Waste Tyre Shredder Machine

5–6 TPH processing capacity for high-volume tyre recycling
Produces rubber granules up to 25 mm
Designed for ≥99% rubber purity
Reduced steel contamination in the rubber output
Integrated magnetic steel separation
Automated control and overload protection
Integrated dust collection
Heavy-duty rasping configuration
Integrated water cooling system
Reduced manpower requirement through automated operation
Suitable for processing car and truck tyre blocks
Designed as an integrated processing line rather than standalone equipment

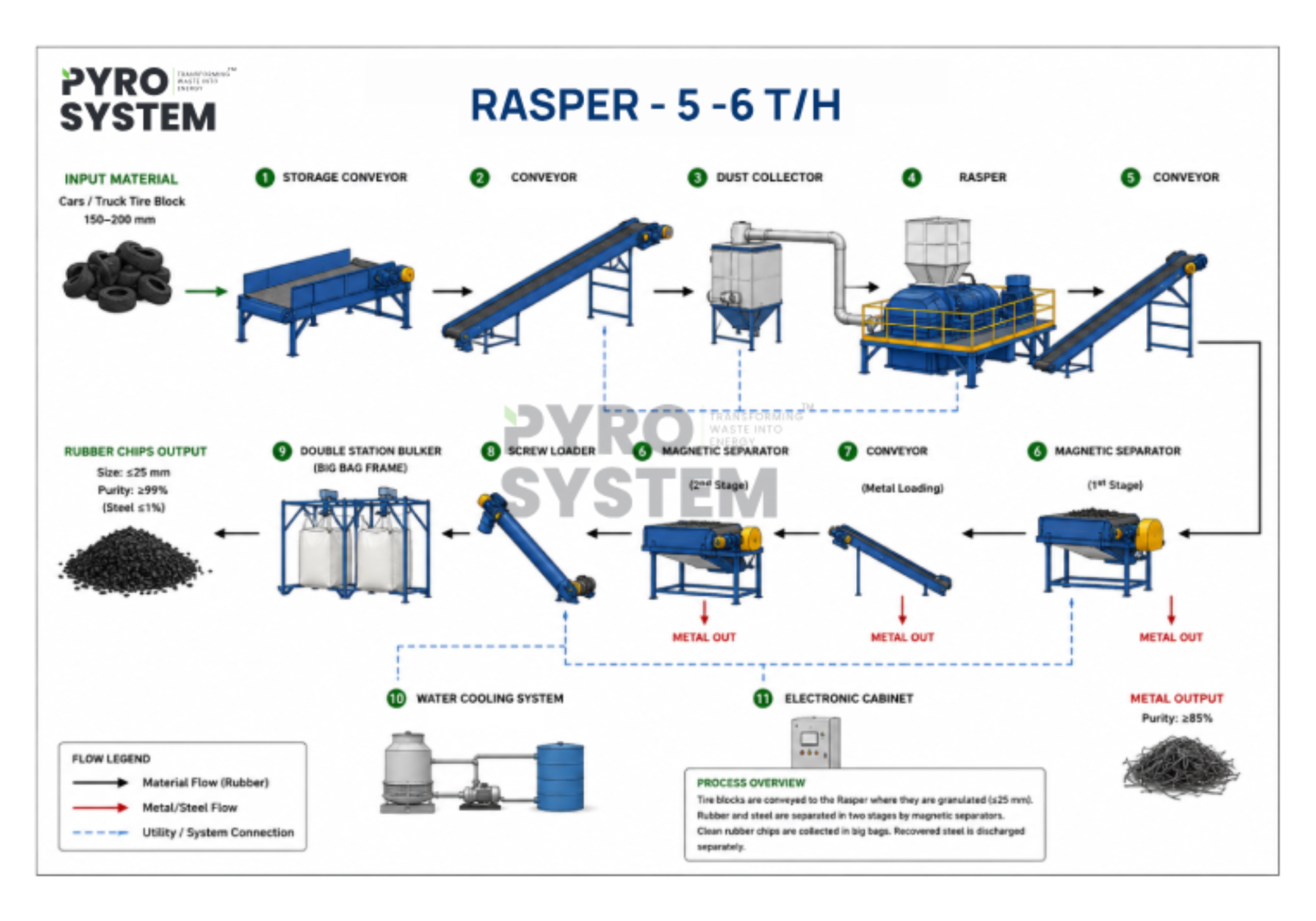

Automatic Waste Tyre Shredder Machine process

The Automatic Waste Tyre Shredder Machine processes 150–200 mm car and truck tire blocks through storage and inclined conveyors into a rasper for granulation. A dust collector manages emissions while conveyors route material through first-stage and second-stage magnetic separators to extract metal output. Clean rubber chips with high purity are collected in big bags via a screw loader and double station bulker.

Input

Output

Process Flowchart of Automatic Waste Tyre Shredder Machine

Our fully automated, continuous system transforms tires, plastics, and oil sludge into high-value fuel and raw materials through a seamless, closed-loop process. Engineered for maximum resource recovery and zero-waste emissions, our SCADA-controlled technology ensures peak operational efficiency with an industry-leading environmental footprint. Experience the future of industrial recycling with a system built for safety, stability, and high-capacity output.

End to End Support Services

Design & Layout

GA drawings prepared based on land availability, production capacity, and regulatory requirements to ensure efficient plant layout and future expansion.

Service Support

Dedicated team providing 24×7 online assistance and prompt support to ensure uninterrupted plant
operations.

Certification Support

Complete support for Pollution Control Board certification and Government approvals for project clearance.

Installation & Commissioning

Expert installation, system integration, calibration, and trial runs to ensure operational readiness.

EPR Registration Support

Professional assistance for Extended Producer Responsibility registration and compliance documentation.
